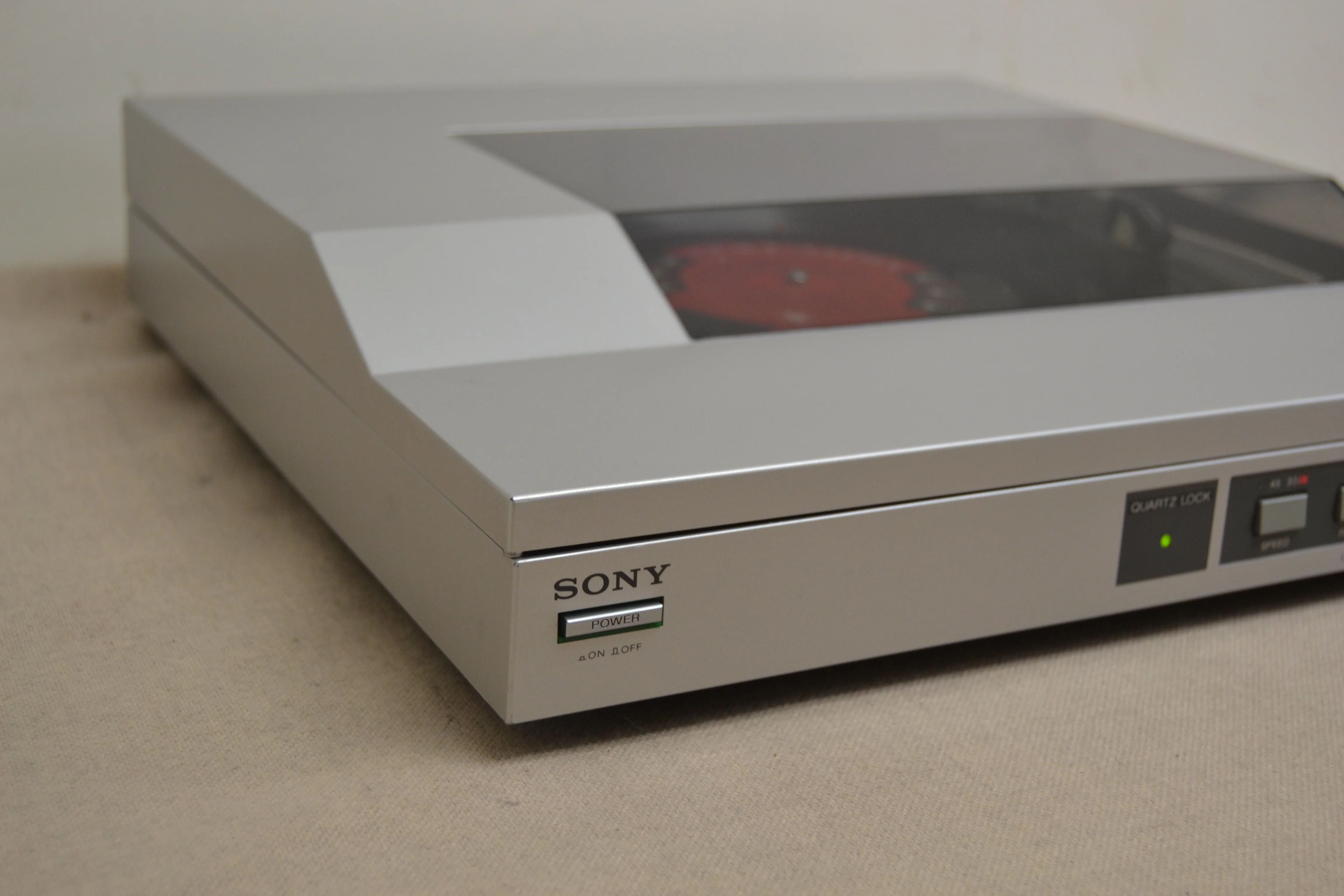

Sony PS-LX55

2-Speed Direct-Drive Turntable (1983-1984)

Description

The PS-LX55 features a linear tracking arm, which compared to a pivoted arm has a very small tracking error (which means greatly reduced harmonic distortion) and almost no pressure on the inside wall of the groove (which means improved tracking ability and channel separation).

The arm transport button allows you to move the arm easily over the desired point of the record with the dust cover closed.

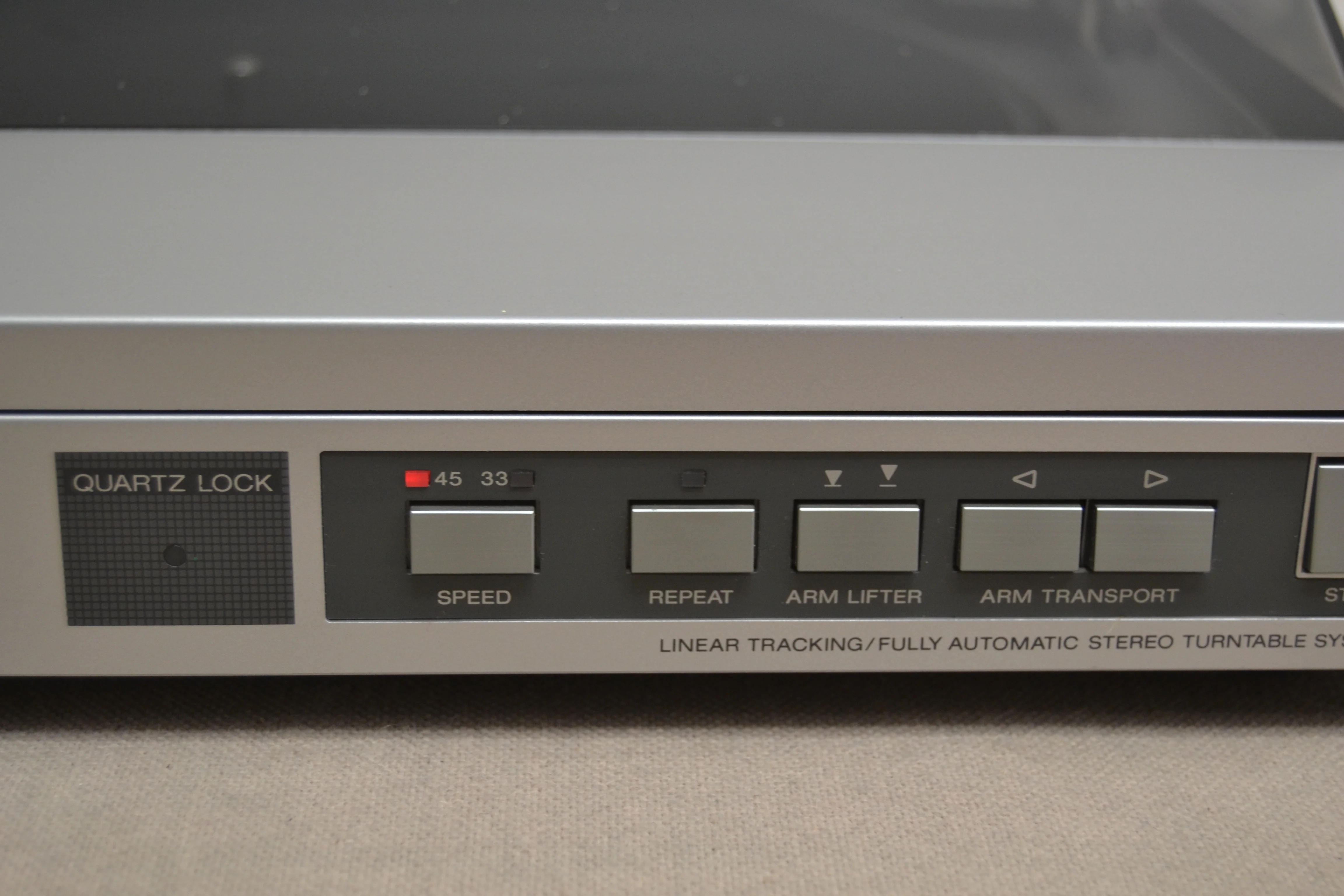

Start/Stop of the record play and tonearm Up/Down can also be controlled using the buttons on the front panel.

The movement of the turntable and the tonearm of the PS-LX55 is controlled by a microcomputer and is activated by the feather touch buttons on the front panel.

Specifications

Platter: 300mm aluminium alloy die-cast

Motor: linear torque brushless and slotless motor

Drive system: direct drive

Control system: quartz lock servo control

Speed: 33 and 45rpm

Wow and flutter: 0.035% WRMS

Signal to noise ratio: 75dB

Automation system: lead in, return, repeat, reject, up/down, record size selection

Tonearm: linear tracking

Pivot to stylus length: 75mm

Tracking force adjustment range: +-0.25g

Usable cartridge: 6g plug-in type

Dimensions: 355 x 85 x 355mm
